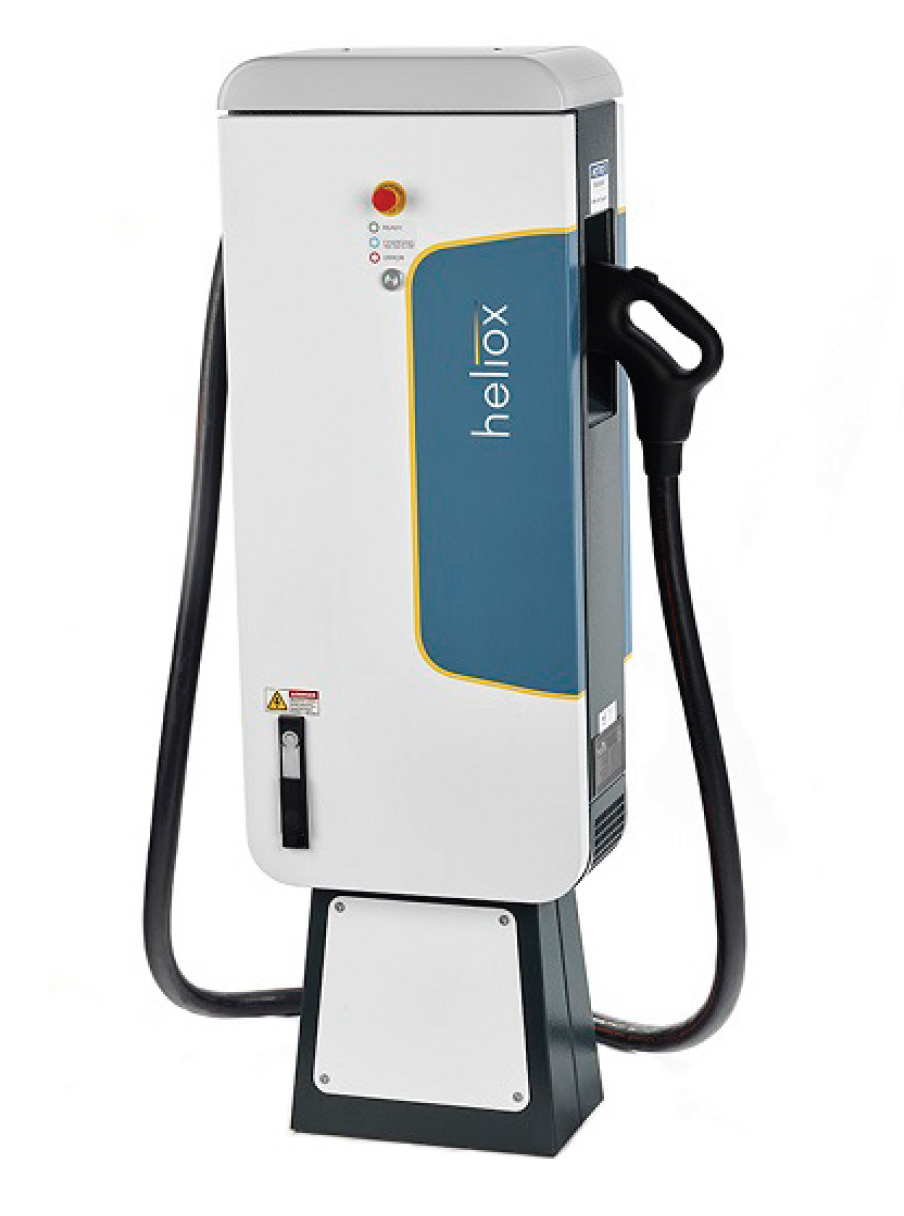

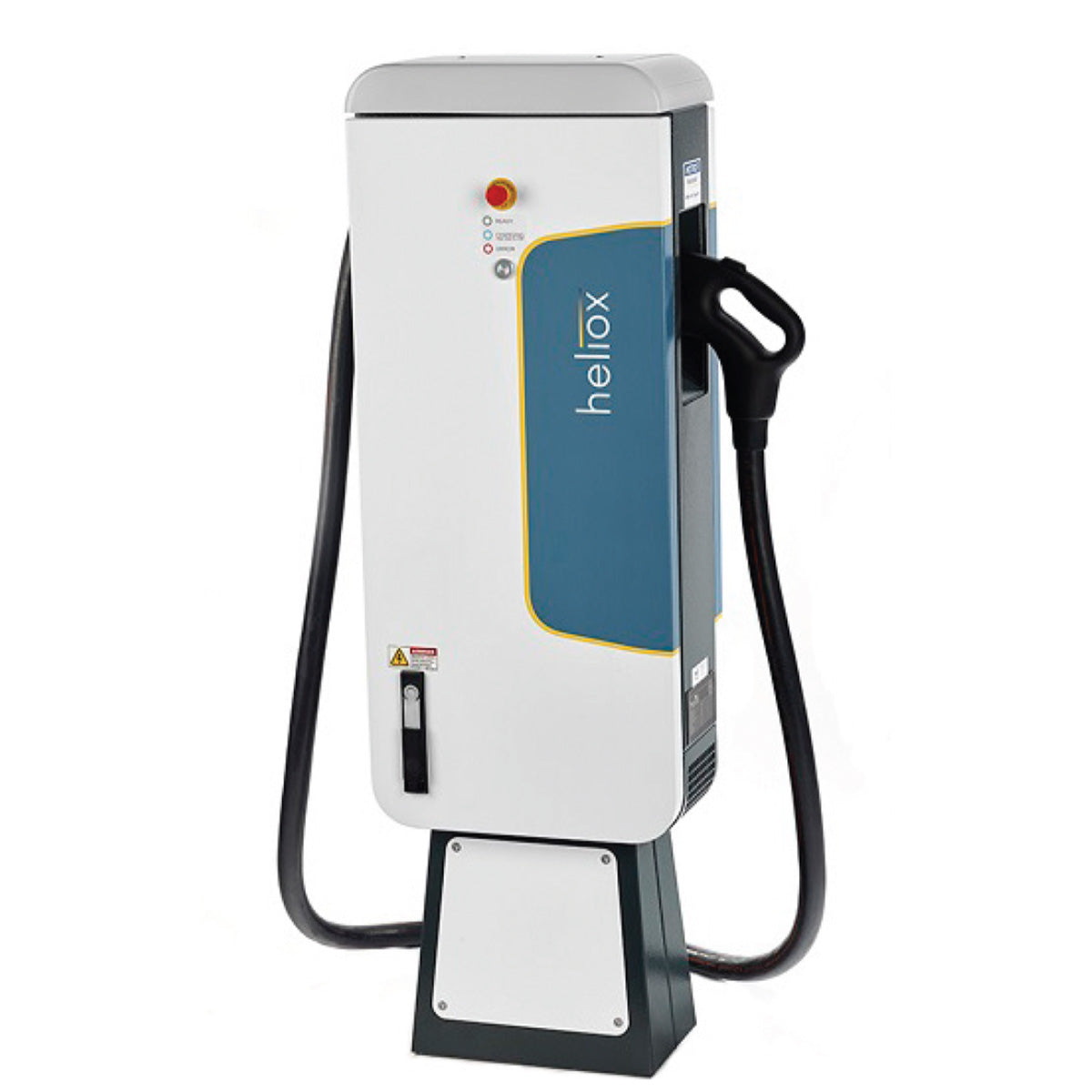

250 A DC column for Heliox Flex 180 kW

Charging standard:

SAE J1772

Communication standard:

DIN70121 / ISO15118-1/2/3

CCS plug standard:

SAE J1772 (CCS type-1)

Compliance and safety:

UL 2202 / UL 2231

Maximum DC voltage:

1000 V

Maximum DC current:

250 A

Input connections from EVSE base station:

DC+, DC-, Gnd, communication, 480 V AC 60 Hz

Plug mating force:

< 75 N

Cable length:

Standard: 11.5 ft.

Extended: 23 ft.

Cable thermal protection:

Charge current derating based on connector temperature feedback

Human machine interaction:

Charger status indication and button to stop charging session

Temperature range:

-13 to 113 °F, derating may apply

Environmental operating:

ISO 12944: C4 H

Operational noise level:

< 55 dB(A) @ 40”

Protection:

NEMA 3R / IK10 / IP44

System weight:

220 lbs.

System dimensions:

H 55”, W: 18”, D: 10”

System clearance:

CWL: 8”, CWR: 20”, CD: 37”
