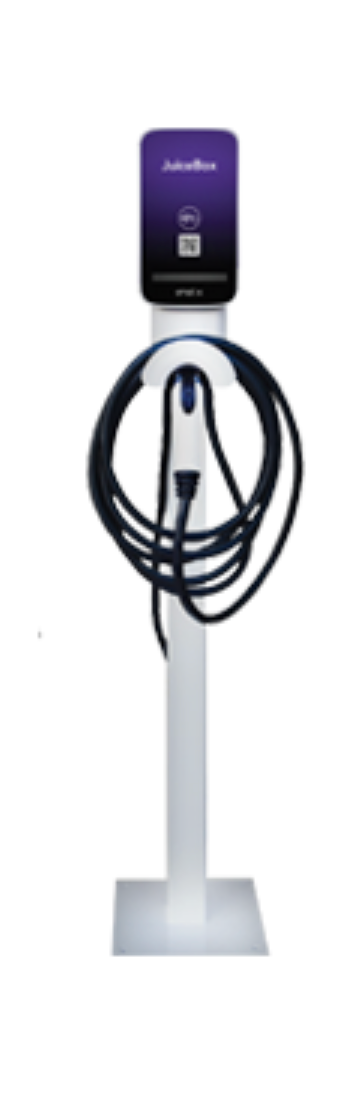

JuiceStand 40 Amp Level 2 EV Charger Pedestal
JuiceStand 40 Amp Level 2 EV Charger Pedestal

JuiceStand 40 Amp Level 2 EV Charger Pedestal

Regular price
$0.00
Sale price
$0.00
Unit price
per

    Juice Stand

    Durable and affordable, JuiceStand™ is the perfect solution for MUDs, workplaces, and small businesses who expect light to medium EV traffic.

    JuiceStand’s small footprint is ideally suited for locations with limited parking space, and can include one or two UL Listed JuiceBox units, which are compatible with all electric vehicles. JuiceStand is our most affordable commercial EV charging solution and offers all of the same smart charging features for businesses that want to offer private or public charging.

    Key Features:

    •  40 amp output and include one or two JuiceBox charging stations
    • Save on installation with cost-effective ground-mounted solution
    • SAE-J1772TM compliance ensures compatibility with all EVs
    • Robust steel-construction stand designed for durability in all-weather conditions
    • JuiceNet smart charging platform offers web-based portal to monitor usage and configure charging settings

    Juice Stand

    SPECIFICATIONS:

    Mounting Solution ›› Easy and cost-effective installation: ground-mounted with 4 bolts, no concrete pad recommended
    ›› Steel construction: .08 in. thick steel to withstand weather and impact
    Weight & Dimensions ›› Height: 59.3 in.
    ›› Width: 3.5 in. by 6 in. deep
    ›› Base: 12 in. x 12 in.
    ›› Weight: 80 lb. (without charging stations - add 15 lbs per JuiceBox)
    JuiceBox Chargers
    ›› Dynamic LED lights show charging status: network connectivity, charging in progress, car connected, delaying charging, standby
    ›› Charging stations secured with four security screws
    ›› Optional RFID: Access control enabled through RFID card
    Electrical Characteristics 40A, 9.6 kW
    ›› Single phase input: nominal voltage 208/240 VAC, voltage range 177 – 264 VAC
    Input Cable & Plug ›› UL-rated hardwire conduit & wiring
    Output Cable & Connector ›› 18 ft cable
    ›› J1772 standard compliant
    JuiceNet Smart Charging Platform ›› Web-based portals: set rates and charging hours; monitor charging status and consumption data; control station access; EV load management
    ›› Precision measurement of power, energy, voltage & current
    ›› Driver app to monitor and pay for charging (iOS & Android)
    ›› JuiceNet Enterprise offers enhanced payment options, advanced user groups and access control, and multi-property EVSE management
    ›› Refer to the JuiceNet Business and JuiceNet Enterprise data sheets for more on the capabilities of each dashboard

    Safety ›› UL and cUL Listed
    Warranty ›› 3-year limited parts warranty for commercial use
