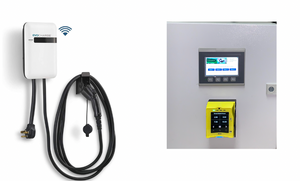

EVoCharge iEVSE, Level 2 EV Charger, 240 Volt 32A, Wi-Fi, OCPP EV Charging Station, UL Listed EVSE, Wall Mount & Portable, Charge up to 8X Faster Than Level 1 (18 ft EV Charging Cable (Cord) Length)
- Charges all EVs and PHEVs: Charges and fully compatible with all Electric Vehicles (EV) and Plug-in Hybrid Electric Vehicles (PHEV) sold in the United States and Canada.
- Superfast Charging, Easy Installation: Charges up to 8x Faster than Standard AC Level 1 EV Charging Cords; the maximum 7.68kW charging station output provides up to an estimated 25-35 miles of Range Per Hour of Charging. The EVoCharge iEVSE is Engineered for ease of Installation with a Standard NEMA 6-50 plug and universal mounting bracket for wall mount, pedestal (post) mount, or the ability to mount to any other structure.
- Adjustable Current Output Settings & Modern, Elegant, Compact Design: Adjustable Maximum Current Output Settings (32A, 24A, 16A) to Support Multiple Circuit Ratings (30A, 20A). Charging Station form factor is smaller than a sheet of standard printer paper – modern, elegant design that compliments your home and EV.
- Outdoor Rated, Robust and Portable Design, Cord and Plug Holder (Holster) for Effective Cable Management: NEMA 4 Outdoor and Indoor Rated, designed for use in extreme weather conditions. The EVoCharge iEVSE comes Standard as Plug-in configuration with a NEMA 6-50 Plug (a $50 option for many competitor products) that can be easily removed for Hard Wire Installation. Effective cable management provided by the standard cord and plug holder (holster) that can also be remotely mounted
- Cable Length: 18 ft
- Weight: 20lbs
- Amerage: 30 Amp
- Voltage: 208 VAC - 240 VAC
- Input/Output: 7.2 kW
- Dimensions: 12.6 x 10.3 x 4.5
- Level 2 charging
- J1772 connector
- NEMA 6-50 Plug
- LED Indicator
- USB Storage: Yes
- Networking: No
- Enclosure: NEMA Type 3R; indoor/outdoor
- Warranty: 3 years

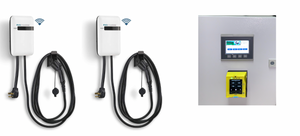

Centralized cashless payment center and charging four station with 32 Amp
Customizable power chargers, allowing installation with almost any 208-250V electrical system
Payment Processing center for Level 2 Charger .
Processing payment for Charging four cars simultaneously
Intuitive usage using 4” touch screen
complete cashless solution
Accepts all cashless payments methods
Customizable ad
Included First Year Annual network Service fee
Main Features
4 Channel Pay station
payment Processing for charging four cars simultaneously
Intuitive usage using 4” touch screen
Powered by Nayax VPOS Touch allowing complete telemetry and cashless solution
Accepts all cashless payments methods
- Debit and Credit Cards
- Mobile, NFC Payments
- Prepaid cards and Closed environment solutions
Swipe, Contact and Contactless
Electrical data
Input Voltage: 110-250 VAC, Single phase
Output : 4 EV Charger Channel
Environmental
Approved for both Indoor & Outdoor installations.
IP54, Type 3R
Operating temperature: (-25°C) to (+55°C)
Non-Operating temperature: (-30°C) to (+70°C)
Humidity: Up to 100% non-condensing
IP55, weather and water proof
Supported Payment Schemes
Contact Card: EMV Level 1 + Level 2 - Certified
Contactless: EMV Level 1 - Certified
Contactless: EMV Level 2:
Visa PayWave EMV + Mag Stripe
MasterCard PayPass EMV + Mag Stripe
Magnetic Stripe Card: Tracks 1,2,3 - JIS II
Other Cards Supported: NFC, MIFARE, HID-iClass, FeliCa
Safety and Certification:
UL Listed
Over power protection
Dimensions / Weight
WxHxD: 6 x 16 x 14 inches
Weight: 20 lbs
